Product Attributes
Model No.: L097-L099,L103-L105
Brand: MEDTHO/OEM/ODM
Functional Use: Implant Materials &Amp; Artificial Organs
Place Of Origin: China
Medical Device Classification: Class Iii
Warranty Service: 5 Years
After-sales Service: Online Technical Support
Remarks:: Customized service is available
Supply Ability & Additional Information
Packaging: PE BAG/cartons packing outside
Productivity: 1000 Piece/Pieces per Day
Transportation: Ocean,Land,Air,Express,Express
Place of Origin: china
Certificate: CE ISO
HS Code: 902110009
Port: Shanghai
Payment Type: T/T,Paypal
Incoterm: FOB
Product Description
The upper limb External Fixator system is suitable for older children with open fractures of the ulna and radius, proximal humerus, unstable reduction or obvious swelling.
Advantages
1.It can be adjusted flexibly according to the reduction requirements, easy to operate, less bleeding, easy to care.
2.It will not aggravate the damage to the blood supply, periosteum and soft tissue of the fracture end, improve the fracture healing rate, and reduce the postoperative infection rate.
3.The small fragment External Fixation is firm. It restores and maintains the length of the limb by extension and ligament extrusion, and reduces the comminuted fracture fragments.
4.The rotational axis device and removable characteristics of the humeral external fixator can adapt to the fixation strength required by fracture healing in different periods. The humeral orthopedic external fixation allows the shoulder joint to gradually increase the range of motion, which is conducive to the postoperative rehabilitation and shoulder joint function recovery of children.
5.No damage to the epiphyseal plate, no entry into the joint cavity, in line with the treatment principles of pediatric fracture.
6.After fracture healing, Stryker single arm upper limb external fixator is convenient to remove, does not need a second operation, and significantly reduces medical costs.
Parts

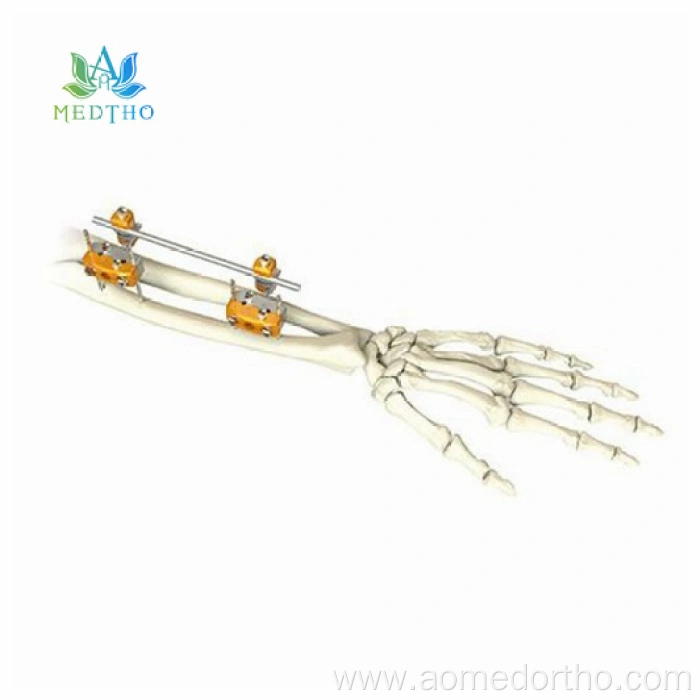

Ulna & Radius External Fixator - spanning type Reference NO. L097
Including four φ5/5 rod to rod couplings,two φ5/3-4 4-hole pin clamps,four φ5/30° posts,two φ5*200mm connecting rods and four φ3*120mm self-tapping and self-drilling Bone Screws.
Forearm External Fixator Reference NO. L098
Including two φ5/5 rod rod to rod couplings,two φ5/3-4 4-hole pin clamps,two 0°posts,a φ5*200mm connecting rod and four φ3*120mm self-tapping self-drilling bone screws.

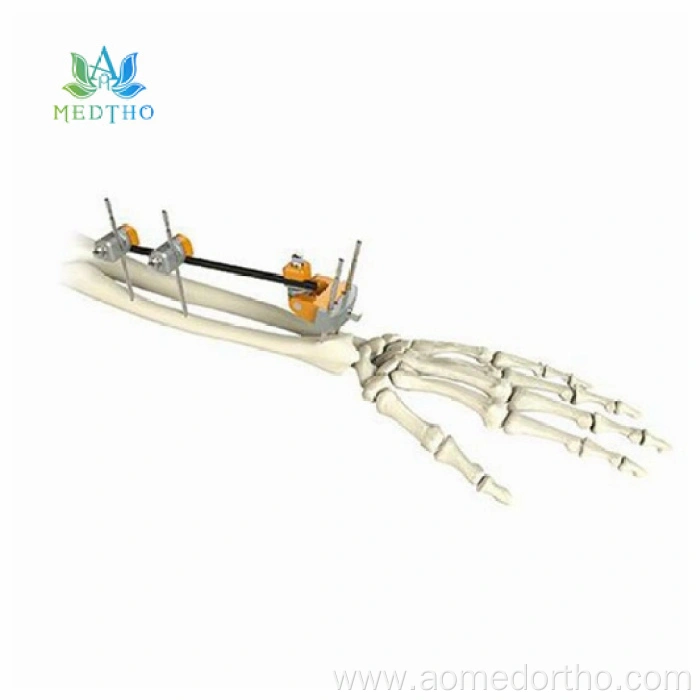

Ulna & Radius External Fixator - distal radius type Reference NO. L099
Including one φ5/5 rod to rod coupling,two φ5/3-4 4-hole pin clamps,a φ5/3-4 peri-articular pin clamp,a φ5*200mm connecting rod and four φ3*120mm self-tapping self-drilling bone screws.

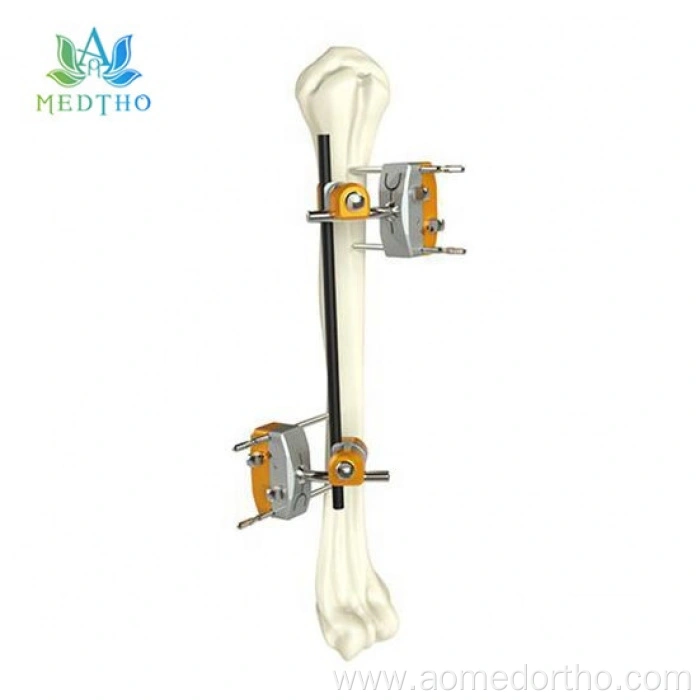

Humeral Shaft External Fixator Reference NO.L103
Including two φ5/5 rod to rod couplings,two φ5/3-4 4-hole pin clamps,two φ5/30° posts,a φ5*200mm connecting rod and four φ4*120mm self-tapping self-drilling bone screws.
Humeral Shaft External Fixator Reference NO. L104
Including four φ5/5 rod to rod couplings, two φ5/3-4 pin to rod couplings, two φ5/3-4 4-hole pin clamps, two φ5*250mm connecting rods, a φ5*200mm connecting rod, and two φ5/30° posts and four φ4*120mm self-tapping and self-drilling bone screws.

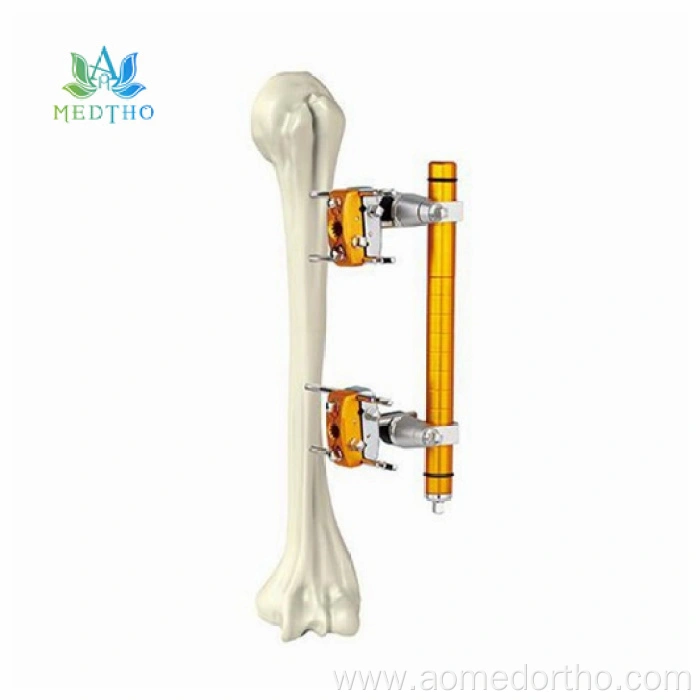

Humeral Shaft Externa Fixator Reference NO. L105
Including a φ15 compression/distraction tube,two φ15/5 tube to rod couplings,two φ5/3-4 4hole pin clamps,two φ5/30° posts and four φ4*120mm self-tapping self-drilling bone screws.
In conclusion, the upper limb external fixation combined fixation for the treatment of upper limb fractures is simple, minimally invasive, easy to reduce the fracture, satisfactory fixation, easy to care, avoid epiphyseal injury and fracture displacement, conducive to early postoperative functional rehabilitation exercise, can enable children to return to school early, avoid epiphyseal injury, do not enter the joint, and can prevent deformity. It has less damage to the local soft tissue and periosteum, and can preserve the blood supply of the fracture end to the maximum extent, and the postoperative recovery is fast.
Packaging & Delivery
Selling Units: | Piece/Pieces |
---|---|
Package Type: | PE BAG/cartons packing outside |
