orthopaedic drill and saw

Get Latest Price

Contact Now

PRODUCT VIDEO



 

Product Attributes

Model No.: M014,M026,M029,M032

Brand: MEDTHO

Place Of Origin: China

Kind Of Power: Electric, Electricity

Warranty Service: 1 Year

After-sales Service: Online Technical Support

Material: Steel

Product Quality Certification: Ce

Medical Device Classification: Class I

Supply Ability & Additional Information

Productivity: 100 set/sets per Day

Transportation: Ocean,Land,Air,Express,Express

Place of Origin: china

Certificate: CE ISO

HS Code: 84672100

Port: shanghai

Payment Type: T/T,Paypal

Incoterm: FOB

Product Description

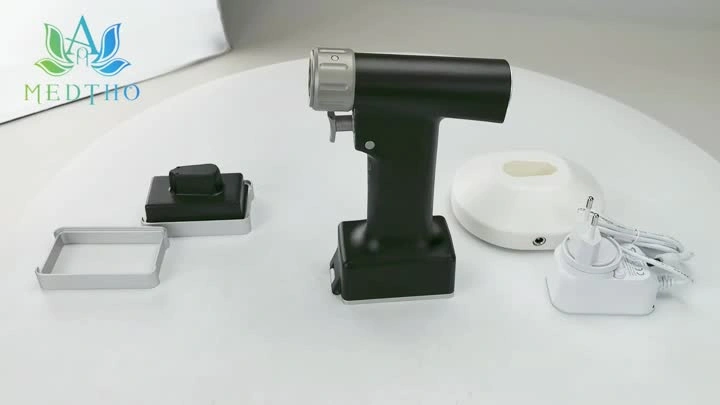

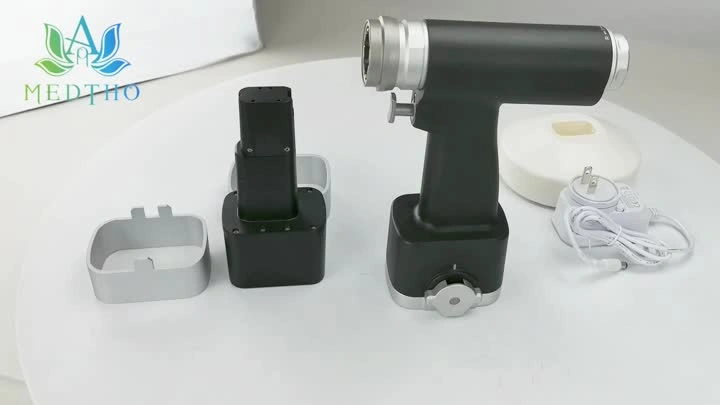

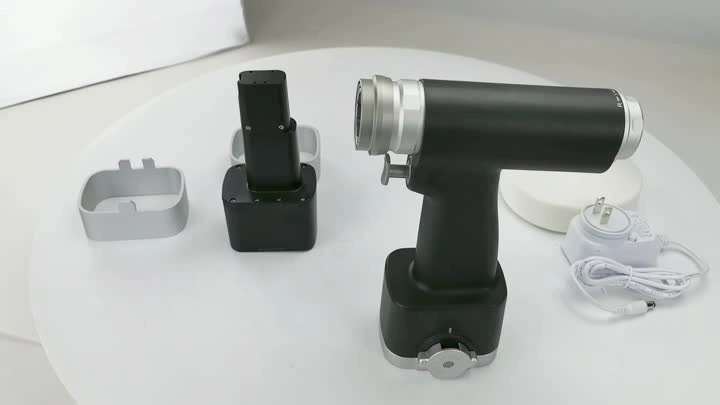

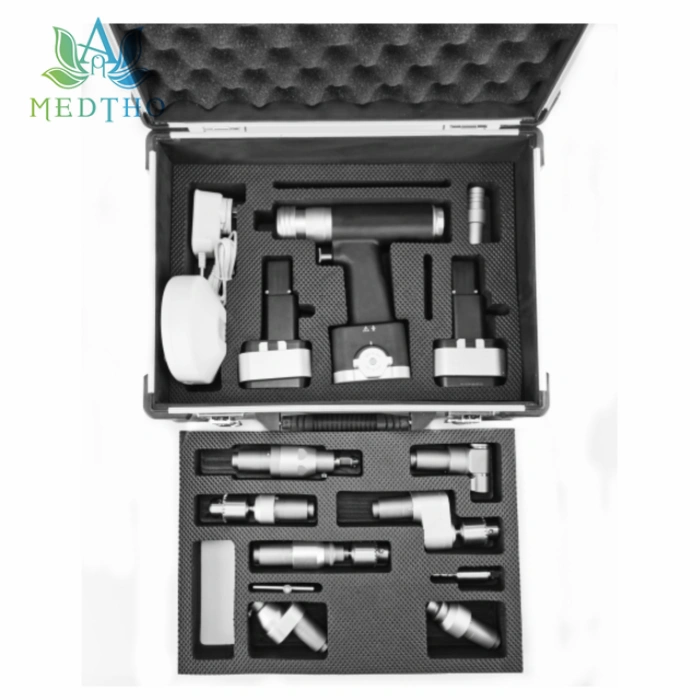

Multifunctional Medical Power Tool System is designed for orthopedics and neurosurgery and cardiothoracic surgery.

The Orthopedic Power Tool allows easy exchange of attachments.Can be sterilized up to 135℃.The power tool should be steam sterilized in the specific case.Please attention,don't sterilize batteries.

Usage method
1.For battery loading and unloading,open the handle cover,put on the isolation channel,hold the battery with the disinfection gauze,insert the small head of the battery into the slot in the handle,remove the isolation channel,cover the handle cover,turn counterclockwise,open the handle cover,hold the handle and pat the battery until it falls on the table of the soft object after the operation. Turn the rear end knob of the host clockwise to R to turn forward,and turn the rear end knob of the host counterclockwise to L to reverse.
2,The battery is charged,it can be used after about half an hour, and the battery needs to be charged after half an hour.
3,Disinfection,charger,battery is strictly prohibited disinfection, put the host on the stainless steel mesh rack with 135 degrees of high temperature disinfection for 20 minutes.
4 Cleaning,the surface of the charger,battery host and accessories can be dipped in disinfection alcohol clean gauze,collection,to prevent blood and other substances remaining on the drill,affecting the next using.

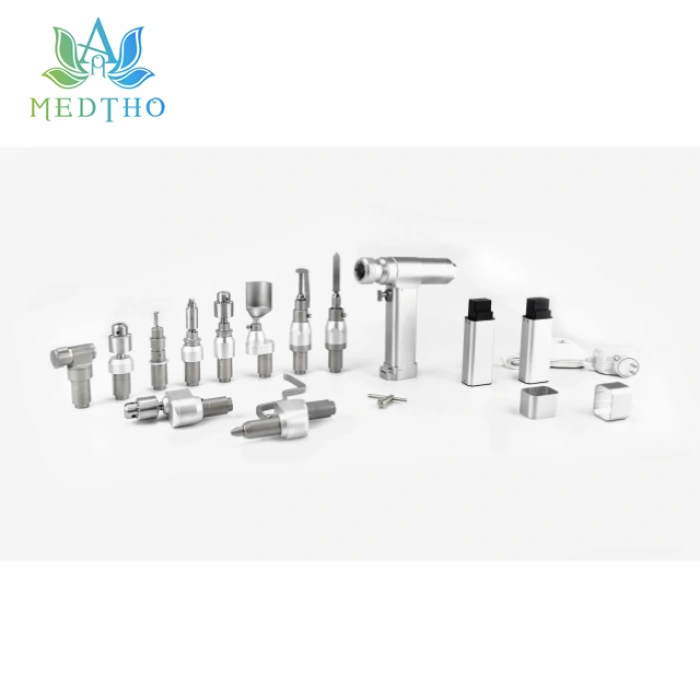

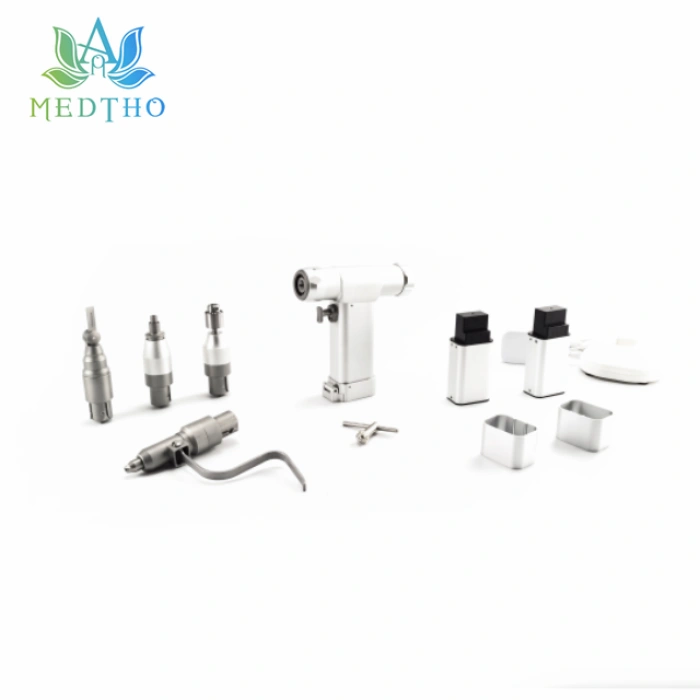

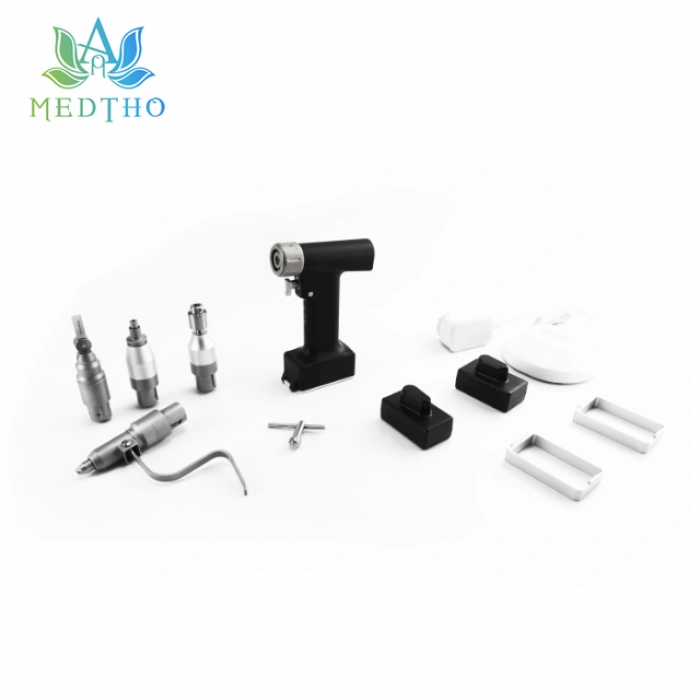

Attachments
1.Drill chuck is imported,it ensures outstanding performance during operation.
2.Wire and pin chuck is applied to various Intramedullary Nail or kirschner's wire fixing operation easily and conveniently.
3.Medical oscillating saw is 18000cpm,it can be installed quickly and replaced with the saw blade.
4.Acetabular reamer is 0-1200rpm speed,sagittal saw attachment is 0-18000cpm speed,reciprocating saw attachment is 0-14000cpm.They are used for joint surgeries.
5.Sternum saw attachment is 0-14000cpm speed,used for thorocotomy surgeries.
6.Cranial drill attachment is 0-800rpm/0-36000cpm speed,used for neurosurgeries.
7.TPLO Surgical Bone Saw attachment is 0-16000cpm speed,used for joint surgeries.

Packaging & Delivery

Selling Units:	Set/Sets
