Product Attributes
Model No.: A011-A014
Brand: MEDTHO/OEM/ODM
Functional Use: Implant Materials &Amp; Artificial Organs
Place Of Origin: China
Medical Device Classification: Class Iii
Warranty Service: 5 Years
After-sales Service: Online Technical Support
Remarks:: Customized service is available
Supply Ability & Additional Information
Packaging: PE BAG/cartons packing outside
Productivity: 1000 Piece/Pieces per Day
Transportation: Ocean,Land,Air,Express,Express
Place of Origin: china
Certificate: CE ISO
HS Code: 902110009
Port: Shanghai
Payment Type: T/T,Paypal
Incoterm: FOB
Product Description

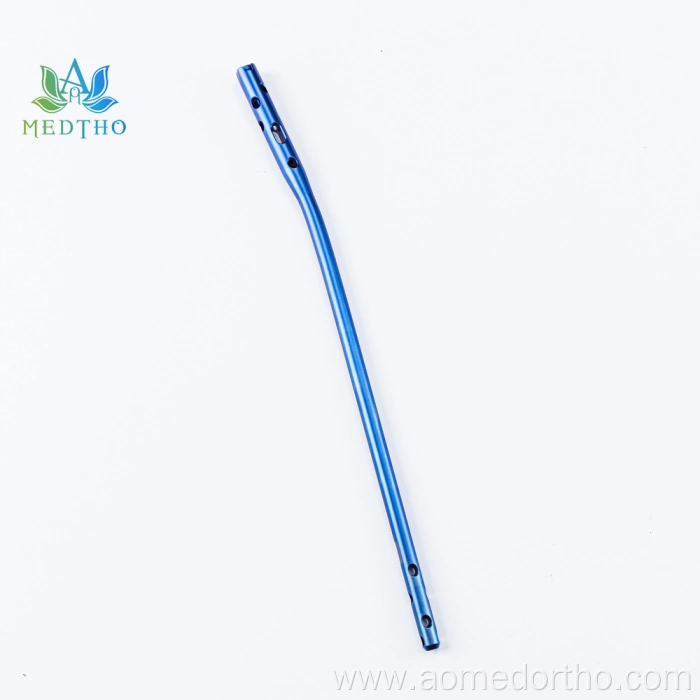

The cannulated Tibia Intramedullary Nail is suitable for fractures of femoral shaft, metaphyseal, tibial plateau and PILON.

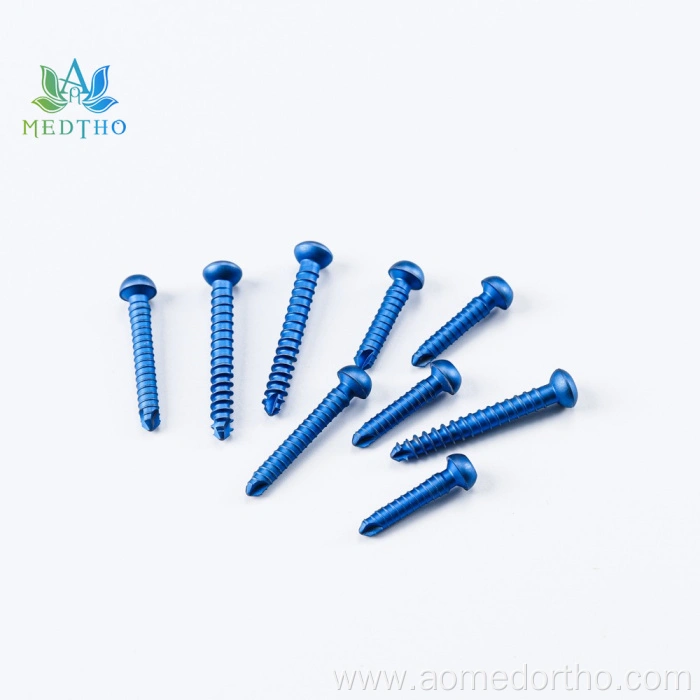

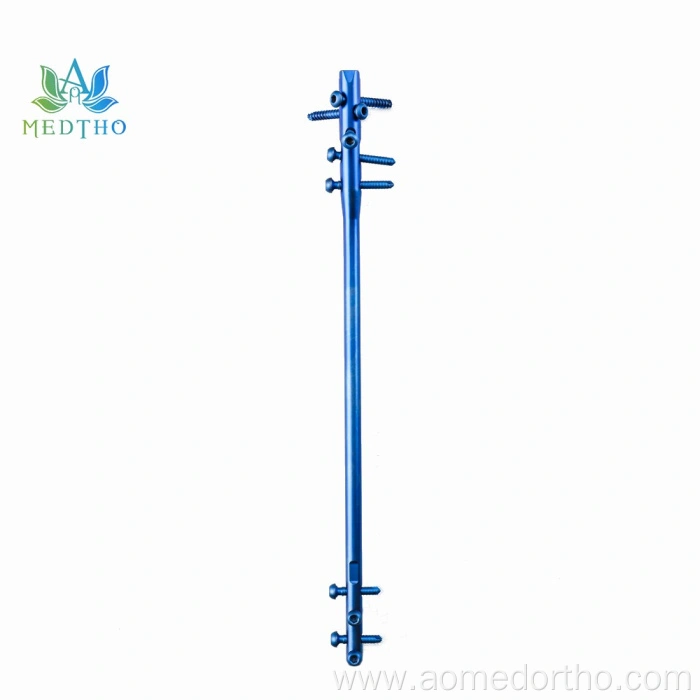

The Tibial Interlocking Nail stabilizes the fracture by inserting a nail into the tibia and promotes healing. The multi-plane locking design of the proximal end, using cancellous locking screws, increases the reliability of the fixation of the proximal fracture block and is suitable for intra-articular fractures of the proximal end. Long slot design of proximal coronal locking nail can realize compression and dynamic treatment in operation. Distal locking screw, with a sagittal Angle of 28°, is suitable for fixation of many types of intra-articular fractures. Proximal screw use 4.8mm cancellous locking screws and 4.35mm cortical locking screw,distal screw use 4.35mm cortical locking screw.
Characteristics
1. The expert tibia interlocking nail adopts the design of proximal abduction Angle of 10° and distal abduction Angle of 3°,which makes the nail insertion more smooth.
2. Proximal anterior resection was performed to reduce the irritation of the tibial ligament.
3. All four planes have locking screw holes, providing a variety of locking screw modes.
4. Special remote socket for easy insertion of instruments.
5. Made of medical pure titanium, it can be used for MRI and CT scanning.
6. Multiple proximal locking (1)Three unique and innovative proximal cancellous bone locking holes,providing the best stability for the proximal fracture fragment.(2)Two transverse locking holes can be used for compression of first period or driving force of second period in surgery.
7. A variety of distal locking methods (1)Two horizontal and one vertical locking provide the best stability of the remote bone .(2)An oblique line of ultra-remote locking,two-way choice to provide the best holding force,avoiding the operation of soft tissue.
Advantages
1.The Orthopedic Interlocking Nails can stabilize the fracture site, avoid the fracture displacement again, and facilitate fracture healing.
2.The incision of expert tibial interlocking nail is small, the damage to the surrounding soft tissue is small, and the postoperative recovery is fast.
3.The expert tibial interlocking nail operation can quickly restore the function of the fracture site and reduce the occurrence of postoperative complications.
4.Postoperative pain is light.The postoperative pain after cannulated tibia intramedually nail surgery is light and has little impact on patients' life.
It is important to note that cannulated tibia intramedually nail surgery should be performed under the guidance of a professional physician, and adequate examination and evaluation should be conducted prior to surgery to ensure the safety and effectiveness of the procedure. Postoperative rest and rehabilitation should be paid attention to, avoid strenuous exercise and heavy lifting, so as not to affect the healing of the fracture. In short, cannulated tibia intramedually nail is also a very commonly used orthopedic implant, which is one of the main products of our company. Its good quality is widely praised by customers.
Packaging & Delivery
Selling Units: | Piece/Pieces |
---|---|
Package Type: | PE BAG/cartons packing outside |
