Product Attributes
Model No.: A015-A020
Brand: MEDTHO/OEM/ODM
Functional Use: Implant Materials &Amp; Artificial Organs
Place Of Origin: China
Medical Device Classification: Class Iii
Warranty Service: 5 Years
After-sales Service: Online Technical Support
Remarks:: Customized service is available
Supply Ability & Additional Information
Packaging: PE BAG/cartons packing outside
Productivity: 1000 Piece/Pieces per Day
Transportation: Ocean,Land,Air,Express,Express
Place of Origin: china
Certificate: CE ISO
HS Code: 902110009
Port: shanghai
Payment Type: T/T,Paypal
Incoterm: FOB
Product Description

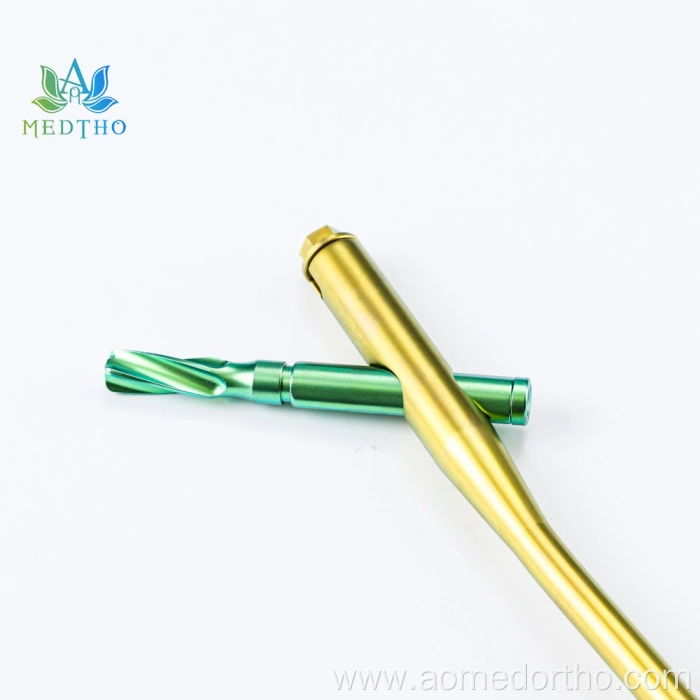

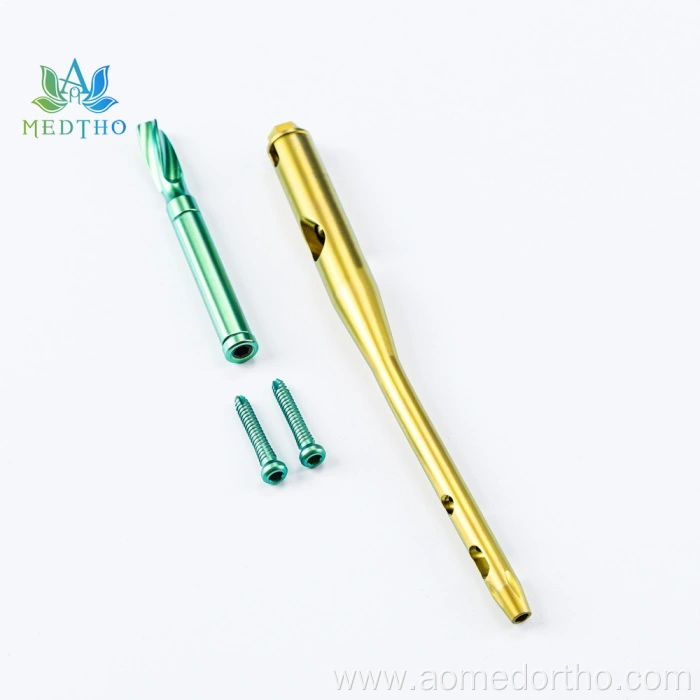

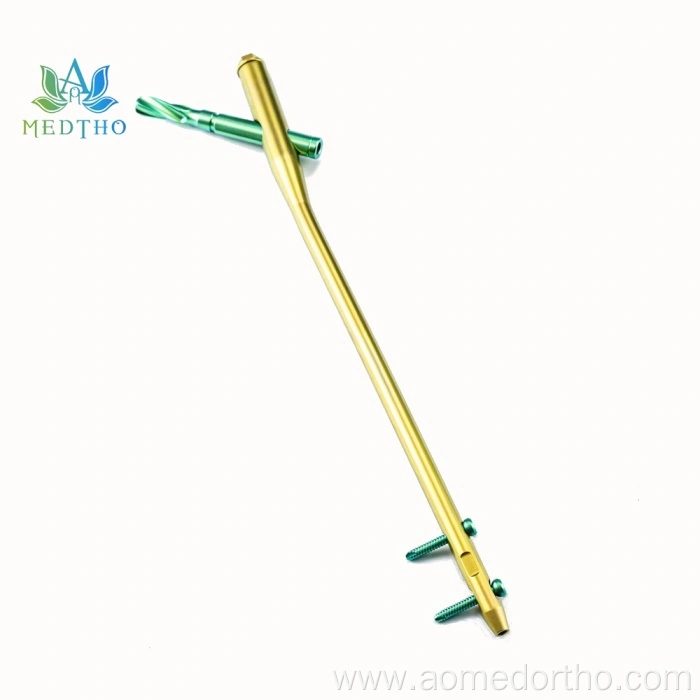

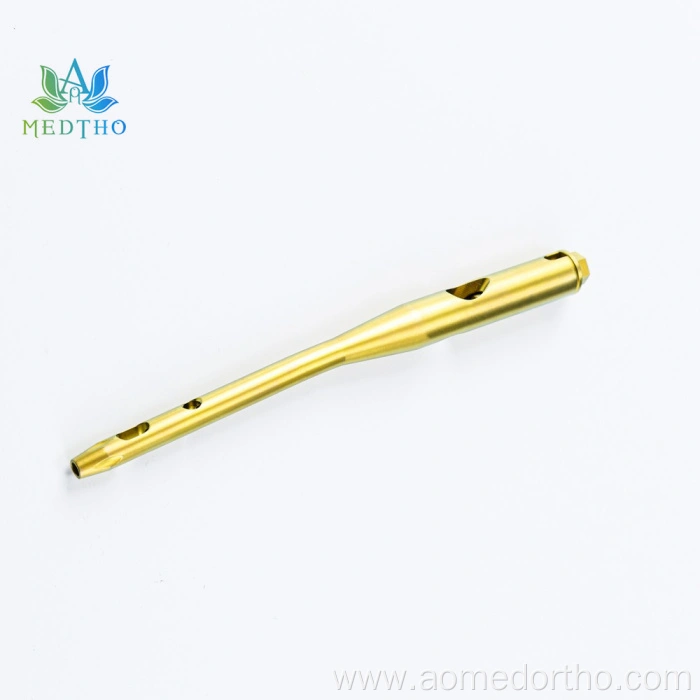

The PFNA Intramedullary Nail is an femur Interlocking Nail used to treat femoral fractures.
It uses intramedullary nail technology to perform surgery without opening the fracture site. PFNA interlocking nail has the advantages of simple operation, small trauma, quick recovery and so on, which is one of the main surgical methods for the treatment of femoral fracture.
Indications
Indications for short PFNA intramedullary nails
1. Transtrochanteric fracture (31-A1,31-A2)
2. Intertrochanteric fracture (31-A3),3.High subtrochanteric fracture.
Indications for long PFNA intramedullary nails
1. Low or extended subtrochanteric fracture
2. Ipilateral trochanteric fracture
3. Multiple fractures of proximal femur
4. Pathological fracture.
Characteristics
1. The 130° cervical trunk Angle design of the main nail conforms to the anatomical design of the femoral neck. The design of proximal abduction Angle of 5° is more consistent with Asian human anatomy, with insertion from the apex of the greater trochanter. The proximal external side of the main nail was cut to avoid irritation to the lateral femoris muscle, and the distal long groove was designed to effectively avoid stress fracture. The anterior arch arc design of the main nail is according with the physiological anatomy of the femur.
2. The lag screw can be blade or thread type. Anti-rotation design, prevent off nail, slip nail. Lag screws have asymmetrical grooves on its handles to resist the spinning screws and prevent sliding. Threaded lag screws are more suitable for younger patients. The compression of the blade screw compresses the cancellous bone and increases bone density. The bone cement hole design of the blade screw head increases the pull resistance of the screw and provides a firm fixation for osteoporosis patients.
3. The long end cap can stabilize the blade, and the sliding end cap is convenient for the movement and pressure of the rotating blade.
Advantages
1. The insertion of PFNA rotary blades to compress cancellous bone can improve the anchoring force of implants, especially for patients with osteoporosis.
2. The Femoral Nail has an external deflection Angle of 5° for easy insertion from the top of the greater tubercle.
3. You can select static locking or dynamic locking.
4.PFNA interlocking nail’s tips and grooves are designed to be as long as possible to facilitate PFNA insertion and avoid local stress concentration.
5. The distal bending design prevents the nail tip from touching the cortical bone, reducing the insertion resistance and the incidence of pain.
6. A blade achieves anti-rotation and angular stability. The blade screw significantly improves the cutting resistance.
Therefore, the use of PFNA intramedullary nails can shorten the operation time, reduce postoperative pain and shorten recovery time for patients with femur fracture.
Packaging & Delivery
| Selling Units: | Piece/Pieces |
|---|---|
| Package Type: | PE BAG/cartons packing outside |
